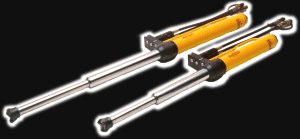

Genesis Telescoping Rams

The Genesis Telescopic Rams are available in two sizes, the 22/43 and the 26/55. The 22/43 and the 26/55 telescopic rams are the perfect compliment to the DF-43 and S-40XL spreaders respectively. The telescopic ram fits easily into the space made by the fully opened spreader. Each Genesis Telescopic Ram extends over the length of two standard rams and produces up to 40% more power in the first stage. The head and base design allow these rams to "dig in" when pushing and lessen the chance of slippage in critical situations. The Genesis Telescopic Rams can be used with the optional Rocker Panel Support to provide additional travel during "dash roll-up" evolutions.

Genesis Push Pull Rams

Genesis Push-Pull Rams provide both pushing and pulling capability. They feature a large base, for an excellent foundation and up to 30,000 lbs of pushing force. An optional accessory kit (below) is available for the push-pull and mini rams. This kit allows for greater flexibility in most rescue situations.

Ram Accessory Kit

The Genesis C-150 Cutter offers the power and versatility of our C-180 cutter with the smooth blades of a conventional cutter.  The wide opening makes it possible to cut "B" and "C" posts with one cut. The longer blades make a deeper cut. The is especially useful when making relief cuts for third door conversations. The C-150 cutter easily cuts through steering columns, door hinges and Nader pins. The C-150 cutter has the power to get the job done.

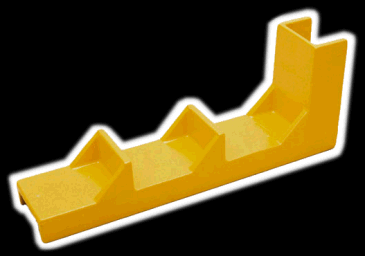

Rocker Panel Ram Support

The Rocker Panel Ram Support can be used with all Genesis Series rams. Each support has three base mounts for the ram to push from, allowing a shorter ram to make a wider opening.  The Rocker Panel Ram Support is designed to spread the force over a wide area of the floor and "B" post. The underside of the channel is lined with non-slip gripping surface to provide a secure foundation when pushing with the ram. The Rocker Panel Ram Support can also be used in conjunction with a spreader. Clamping the rocker panel support with the spreader forces the gripping teeth on the underside of the support into the metal. This creates a secure foundation and locks the support in place. This evolution is useful when the "B" post is weakened or missing. Complete your system with a ram support from American Rescue Technology.

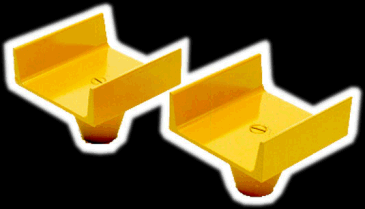

Ram Channels

The Ram Channel can be used with Genesis Series single stage rams. Two of these devices, with two rams and a 4x4 can quickly and easily stabilize a vehicle on its roof. They can also be used to raise a vehicle when performing an inverted roof removal. The Ram Channels are ideal for lifting semi trailers off of vehicles in an under-ride situation. The Ram Channels are valuable accessories making rams more versatile, giving ram availability in building collapse scenarios. The Ram Channel can be used to support beams, trusses and other obstructions.

Type of Ram 21 Ram 31 Ram 41 Ram 62 Ram 22/43 Ram 26/55 Ram
Pushing (Max) - lbs/kN 30,000 / 136 30,000 / 136 30,000 / 136 30,000 / 136 43,000 / 22,600
195 / 103
32,500 / 17,000
148 / 77
Pulling (Max) -lbs/kN 15,000 / 68 15,000 / 68 15,000 / 68 15,000 / 68 N/A N/A
Length Open - in/mm 21.25 / 540 31 / 787 41 / 1041 62 / 1575 42 / 1067 55 / 1397
Weight - lbs/kg 21 / 95 24 / 10.9 29 / 13.2 39 / 17.7 35.5 / 16.1 41 / 18.6
Length Closed - in/mm 14.25 / 362 20 / 508 25 / 635 36 / 914 21.3 / 540 26 / 660
Width - in/mm 11 / 279 8 / 203 8 / 203 8 / 203 8 / 203 8 / 203
Height - in/mm 5 / 127 5 / 127 5 / 127 5 / 127 3.5 / 89 3.5 / 89
Ops Pressure
(Max) - psi/bar
10,500 / 720
5,000 / 345
10,500 / 720
5,000 / 345
10,500 / 720
5,000 / 345
10,500 / 720
5,000 / 345
10,500 / 720
5,000 / 345
10,500 / 720
5,000 / 345
Shipping Weight - lbs/kg 24 / 10.9 27 / 12.3 32 / 14.5 42 / 19.1 39 / 17.7 44 / 20.0
Part Number ART.021.800.1 ART.031.800.1 ART.041.800.1 ART.062.800.1 ART.059.999.9 ART.059.983.2
